Boss Tables Made in the USA

This bolt-together CNC plasma table kit is built for serious makers and entry-level production alike. Crafted from durable 1/8-inch and 3/16-inch material, it’s designed for strength, precision, and long-term reliability. Powered by Neugart 10:1 planetary gearboxes with precision German-made helical gears and NEMA 23 stepper motors, every motion is smooth, accurate, and consistent.

A 5-inch water bed, oversized cut area, and smart features like collision detection, ohmic sensing, and a magnetic torch deliver industrial-grade performance in a compact footprint. Complete with digital torch height control, a ball screw Z-axis, adjustable leveling feet, Boss Quench, lifetime tech support, and a 2-year warranty—this table is built to work as hard as you do.

This table is not compatible with any accessories.

Get In Touch

talk To A Rep

Contact us

Table Overview

Selecting a new plasma table can be a challenging decision. We’re here to assist you every step of the way.

  • Pricing
  • Features
  • Specs
  • Plasma cutter
  • Controller
  • Accessories
  • BT 4 – 4×4 Plasma Table – $16,000
  • BT 5 – 5×5 Plasma Table – $16,700

  • Neugart 10 to 1 Planetary Gear Boxes:
  • Precision German-Made Helical Gears
  • 5-inch Water Bed
  • Oversized Cut Area
  • Collision Detection
  • Ohmic sensing
  • Magnetic Torch
  • Digital Torch Height Control
  • Industrial Bearings
  • Ball Screw Z-Axis
  • Nema 23 Stepper Motors
  • Bolt Together Table
  • Adjustable Feet For Leveling
  • Preloaded Computer
  • Comes with Boss Quench
  • Lifetime Tech Support
  • 2 Year Warranty

hypertherm plasma cutter logo
Learn More

Compatible with these Plasma Cutters

  • Powermax45 SYNC – $3,000
  • Powermax65 SYNC – $4,300
  • Powermax85 SYNC – $5,500

Compatible with These Controllers

FlashCut Software for CNC plasma tables
Learn More
No items found



  • Clearance Under Gantry: 8″
  • Table Capacity: 0.5-inch Max
  • Rapid Travel: 400 IPM
  • Positioning Accuracy: 0.008″
  • Repeatability: 0.008″
  • Weight: 750lbs
  • Sizes: 4×4, 5×5


Request A Quote
Manuals

original owner bumper to bumper

2 Year Warranty

original owner lifetime tech Support

Tech Support

Image Gallery

Discover More Plasma Tables

Boss Tables Downdraft CNC Plasma Table Model 2026 Edition Image
Boss Tables HD Industrial CNC Plasma Table Model 2026 Edition Image
Boss Tables WHC CNC Plasma Table Model 2026 Edition Image

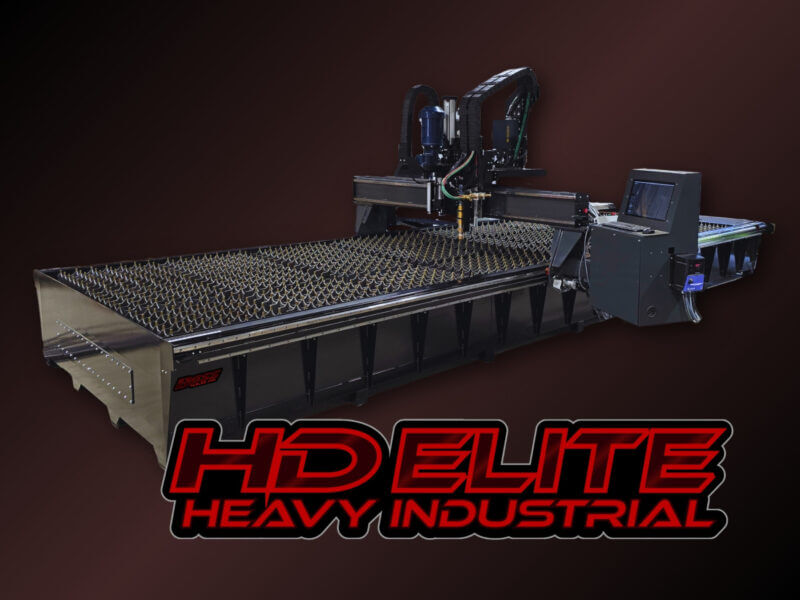

Boss Tables HD Elite CNC Plasma Table Model 2026 Edition Image
